67 100 watt cap board layout

Post by VelvetGeorge » Fri Aug 19, 2005 12:39 am

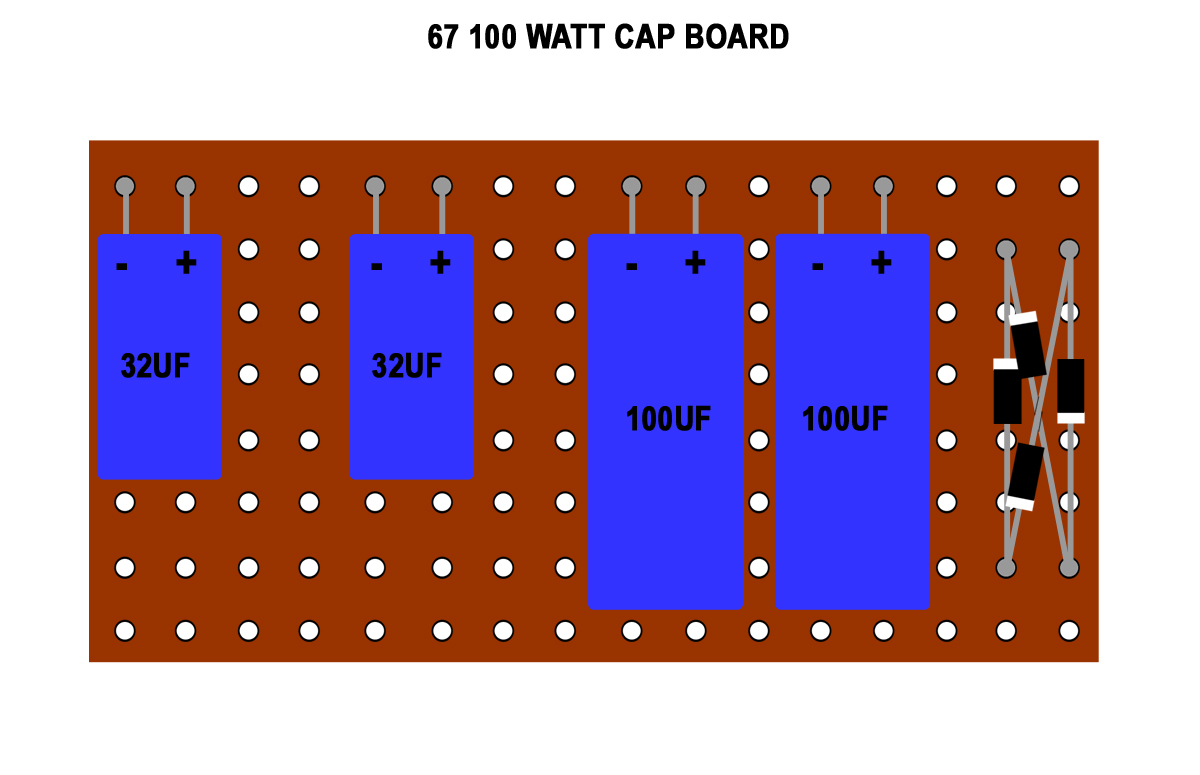

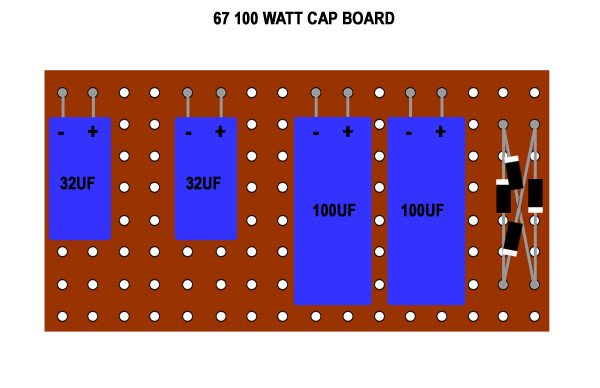

Here's a typical 67 cap board. Later the 32uf caps became 100uf as well.

George
Attachments
67 100 watt cap board copy 2.jpg
67 100 watt cap board copy 2.jpg (80.08 KiB) Viewed 11079 times
67 100 watt cap board copy.jpg
67 100 watt cap board copy.jpg (272.9 KiB) Viewed 2054 times
Check out Plexi Replicas for my personal amp builds...

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Mon Jan 16, 2006 6:29 pm

Here's a pic of the bottom of a 12 series board I just wired. I thought this would be useful.


George
Attachments
cap  board bottom wiring.jpg
cap board bottom wiring.jpg (62.41 KiB) Viewed 10593 times
Check out Plexi Replicas for my personal amp builds...

User avatar
rockstah
Senior Member
Posts: 12481
Joined: Thu Sep 15, 2005 12:28 pm
Just the numbers in order: 7
Location: Austin Texas

Post by rockstah » Mon Jan 16, 2006 6:30 pm

george can you show us the top of that board also?

User avatar
Guitar Adjuster
Senior Member
Posts: 1560
Joined: Mon Oct 31, 2005 8:34 pm
Location: San Antonio

Post by Guitar Adjuster » Mon Jan 16, 2006 6:33 pm

Thanks George, this is a life saver. I appreciate your help with my 12xxx build.

Allen

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Mon Jan 16, 2006 6:41 pm

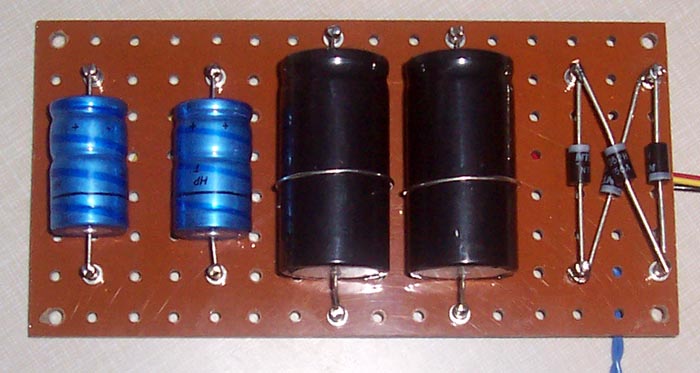

Sure.


Allen, your email is what prompted me to take these pics. Glad they help.


VG
Attachments
cap  board.jpg
cap board.jpg (64.77 KiB) Viewed 10577 times
Check out Plexi Replicas for my personal amp builds...

User avatar
rockstah
Senior Member
Posts: 12481
Joined: Thu Sep 15, 2005 12:28 pm
Just the numbers in order: 7
Location: Austin Texas

Post by rockstah » Mon Jan 16, 2006 6:42 pm

excellent!
i notice the diodes are in a different direction as Dan's layout - but it still works the same. is the way you have it more true?
Mark

BrownSound1
Senior Member
Posts: 588
Joined: Sat Jul 09, 2005 5:27 pm
Just the numbers in order: 13492
Location: Huntsville, AL
Contact:

Post by BrownSound1 » Tue Jan 17, 2006 1:21 am

Allen saved me an email! :D Thanks George for posting that.
Why is it we can remember where all the wires go, but can never find a pick?

User avatar
Guitar Adjuster
Senior Member
Posts: 1560
Joined: Mon Oct 31, 2005 8:34 pm
Location: San Antonio

Post by Guitar Adjuster » Tue Jan 17, 2006 1:02 pm

George,

Just so I get this correct on the wiring....the Red wire on the board goes to the HT Fuse, Yellow goes to the PT Common, Black goes to ground somewere under the board?

Thanks,

Allen Jones

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Tue Jan 17, 2006 1:15 pm

Yellow is the PT secondary center tap.

Run your ground over to the filter cap can mounting bolt.


George
Check out Plexi Replicas for my personal amp builds...

User avatar
Guitar Adjuster
Senior Member
Posts: 1560
Joined: Mon Oct 31, 2005 8:34 pm
Location: San Antonio

Post by Guitar Adjuster » Tue Jan 17, 2006 1:28 pm

The yellow secondary tap on the Hayboer PT is also a Yellow wire between the 2-blue (heater) and white (bias) wires? According to the diagram it has 0 va/c? Correct? I just don't want to blow this thing up first time I turn it on :)

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Tue Jan 17, 2006 1:30 pm

That's correct.

george
Check out Plexi Replicas for my personal amp builds...

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Tue Jan 17, 2006 1:38 pm

A new diagram.


VG
Attachments
cap  board wiring 2.jpg
cap board wiring 2.jpg (58.98 KiB) Viewed 10507 times
Check out Plexi Replicas for my personal amp builds...

User avatar
rockstah
Senior Member
Posts: 12481
Joined: Thu Sep 15, 2005 12:28 pm
Just the numbers in order: 7
Location: Austin Texas

Post by rockstah » Tue Jan 17, 2006 1:42 pm

thanks george!

bluze81
Senior Member
Posts: 1401
Joined: Tue Jun 27, 2006 8:36 am
Just the numbers in order: 7
Location: paradise mid america, los angeles CA native

Post by bluze81 » Tue Dec 26, 2006 12:04 am

VelvetGeorge wrote:Sure.


Allen, your email is what prompted me to take these pics. Glad they help.


VG
George what brands and values are these caps in the picts,bluze

User avatar
rockstah
Senior Member
Posts: 12481
Joined: Thu Sep 15, 2005 12:28 pm
Just the numbers in order: 7
Location: Austin Texas

Post by rockstah » Tue Dec 26, 2006 1:17 am

two ( black) F&T 100u caps
and two ( blue) BC 33u
