Late '68, early '69 restoration

Post by VelvetGeorge » Wed Jun 28, 2006 9:22 pm

I've been taking pics along the way so I thought I would show the restore process on this amp.

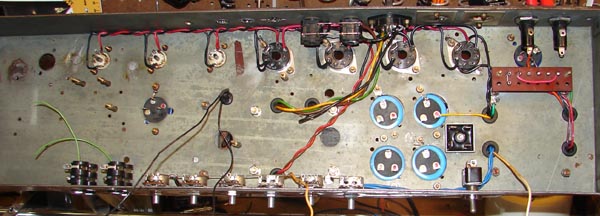

It's an early example of the later plexi 100 layout, with all six filter caps on top. The serial # is 10XXX, not to be confused with the earlier 10XXX amps in late '67. Thanks Marshall...

This one has been around, if only it could talk. Then again, it might just scream "NOoooooooooo".

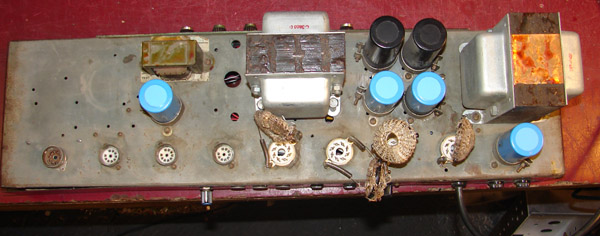

The trannys are not original, unfortunately. But the choke probably is. It's era correct at the very least. Part #C1999 and measures exactly 5H.

The chassis has lots of extra holes as you can see. So does the rear plexi panel. The front is actually in good shape, no extra holes or cracks.

Lots of replaced parts in there.


George
Attachments
DSC00192 copy.jpg
DSC00192 copy.jpg (67.96 KiB) Viewed 14129 times
DSC00187 copy.jpg
DSC00187 copy.jpg (60.85 KiB) Viewed 14134 times
Check out Plexi Replicas for my personal amp builds...

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Wed Jun 28, 2006 9:24 pm

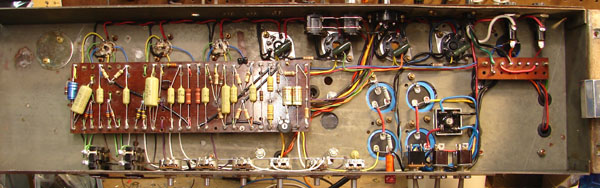

Here's a closer shot of the board and extra tube section.


VG
Attachments
DSC00190 copy.jpg
DSC00190 copy.jpg (74.92 KiB) Viewed 14125 times
Check out Plexi Replicas for my personal amp builds...

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Wed Jun 28, 2006 9:27 pm

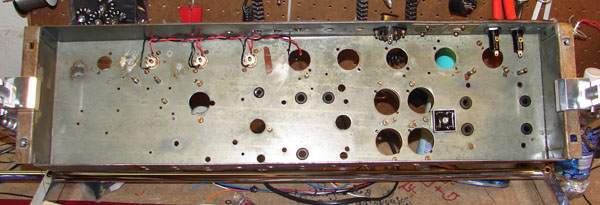

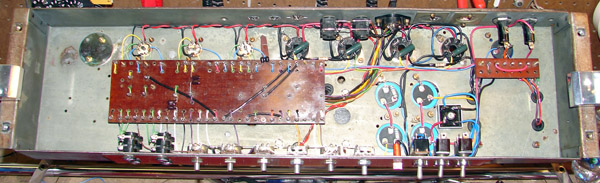

Well, the more I removed, the more obvious it became that I needed to start almost from scratch.

The choke was in the wrong place, the transformers needed to be removed to have wires replaced and routed correctly, the tube sockets are being replaced.......

So it went on the chassis jig and off came the parts.

VG
Attachments
DSC00236 copy.jpg
DSC00236 copy.jpg (60.05 KiB) Viewed 14106 times
DSC00241 copy.jpg
DSC00241 copy.jpg (73.52 KiB) Viewed 14115 times
Check out Plexi Replicas for my personal amp builds...

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Wed Jun 28, 2006 9:30 pm

The board components were all removed so I threw it on the scanner.

Pure art.

VG
Attachments
early '69 top copy.jpg
(60.86 KiB) Downloaded 13664 times
Check out Plexi Replicas for my personal amp builds...

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Wed Jun 28, 2006 9:43 pm

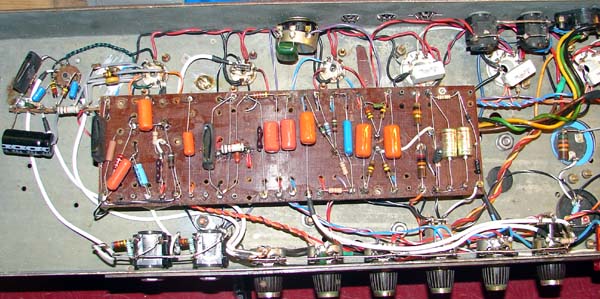

Making progress on the reassembly.

Each part gets cleaned with solvent and a detailing brush before being reinstalled. I spent a lot of time cleaning the chassis too.


george
Attachments
DSC00245 copy.jpg
DSC00245 copy.jpg (56.1 KiB) Viewed 14081 times
DSC00250 copy.jpg
DSC00250 copy.jpg (72.09 KiB) Viewed 14087 times
Check out Plexi Replicas for my personal amp builds...

User avatar
5150loveeddie
Senior Member
Posts: 3340
Joined: Mon Apr 12, 2004 8:52 pm
Just the numbers in order: 13492
Location: Montreal, Quebec CANADA
Contact:

Post by 5150loveeddie » Wed Jun 28, 2006 10:54 pm

Cool I did the same on a 50watt........metal face....let me find the pics
Glutathione increase specialist

http://www.max.com/science/448523/full/ ... lutathione" onclick="window.open(this.href);return false;

User avatar
Flames1950
Senior Member
Posts: 9294
Joined: Sun Feb 08, 2004 1:04 am
Location: Waukee, Iowa

Post by Flames1950 » Wed Jun 28, 2006 11:34 pm

Jesus, that chassis looks like swiss cheese....how many different OT's have been on that thing??

I really appreciate that only six holes were added to my Super PA chassis now.

User avatar
Bainzy
Senior Member
Posts: 2119
Joined: Fri Sep 02, 2005 11:44 am
Just the numbers in order: 7
Location: Bingley, UK
Contact:

Post by Bainzy » Thu Jun 29, 2006 6:21 am

Are you gonna put a new Metroamp OT in there?
"I want to know what happened to the plans they sent you"

Shred Guitar
Plexi Mods - now with new forum, please join!

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Fri Jun 30, 2006 3:13 am

We're sticking with the OT that's been on the amp since the late 70's for now.

Here's the latest progress.


VG
Attachments
DSC00270 copy.jpg
DSC00270 copy.jpg (78.2 KiB) Viewed 14018 times
Check out Plexi Replicas for my personal amp builds...

User avatar
VelvetGeorge
Site Owner
Posts: 7216
Joined: Tue Oct 14, 2003 5:12 pm
Just the numbers in order: 13492
Location: The Murder Mitten
Contact:

Post by VelvetGeorge » Fri Jun 30, 2006 7:14 pm

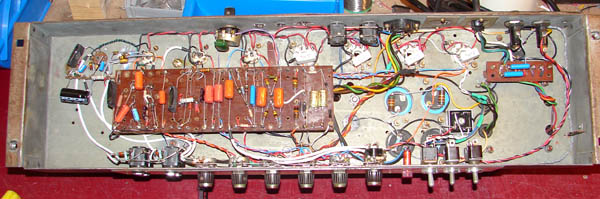

I managed to finish all the wiring and fire this amp up: I'm really happy with the results!!! I wasn't sure about the OT, but I don't see any reason to change it.
