Need help decifering taps on lay down tranny

All about iron and copper.

Moderator: VelvetGeorge

Post Reply
BluePat
New Member
Posts: 21
Joined: Sun Dec 14, 2008 10:27 pm

Need help decifering taps on lay down tranny

Post by BluePat » Thu Apr 16, 2009 12:02 am

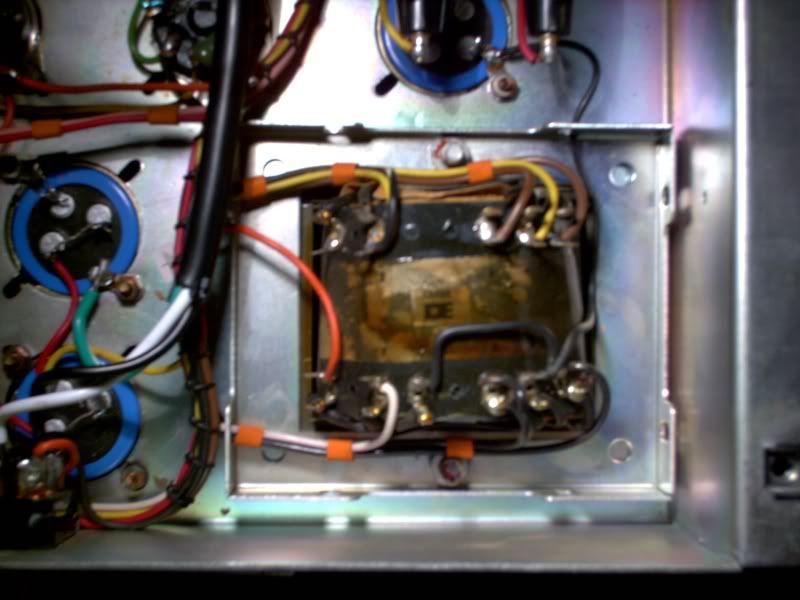

Here is a pic:


I want to know which tap is the 110V versus which is the 120V?

Or, is there a way to measure impedance to determine/distinguish windings?..

Sorry about the crappy pic.

Thanks,
Pat
