The heater wires on the PT are the 3 large solder post type tabs. The 2 outer tabs are 3.15VAC and the center which is kind of 2 tabs togther, is the center tap (CT). Like the 100W instructions solder a twisted wire pair from the 3.15 tabs to pins 2 and 7 of V7. Solder a wire from the CT tab to the nearest chassis ground lug. Most likely youll have to add another one on the other bolt of the V7 tube socket.
Im waiting on a PT braket to do this step so I cant take pictures for now.
Step 5b through 5e can be skipped over.
Add the 1-ohm resistors to the sockets the same as step 5f and the same for the black wire in 5g. It may be better to put that black wire on the V6 tube socket since the output jacks are in a different spot on the JTM45/100 chassis'.
Step 6 is the same. I recently started using heat shrink on the twists between the tube sockets so they stay nice and tight and are easy to work with. It may not be potentially as neat looking or authentic but it makes the whole process faster and easier.
Steps 5 & 6 - Initial connections and heater wiring
Moderator: VelvetGeorge
-
- Senior Member
- Posts: 8566
- Joined: Fri Dec 10, 2004 8:49 pm
Steps 5 & 6 - Initial connections and heater wiring
- Attachments
-
- 04-25-08_1016.jpg (101.79 KiB) Viewed 2270 times
-
- 04-25-08_1224.jpg (77.44 KiB) Viewed 2270 times
-
- 04-25-08_1228.jpg (122.82 KiB) Viewed 2268 times
-
- 04-25-08_1229.jpg (117.29 KiB) Viewed 2270 times
Last edited by Billy Batz on Mon Apr 28, 2008 1:22 pm, edited 2 times in total.
- gutpile
- Senior Member
- Posts: 1370
- Joined: Wed Nov 01, 2006 3:47 pm
- Just the numbers in order: 13492
- Location: Northville, MI

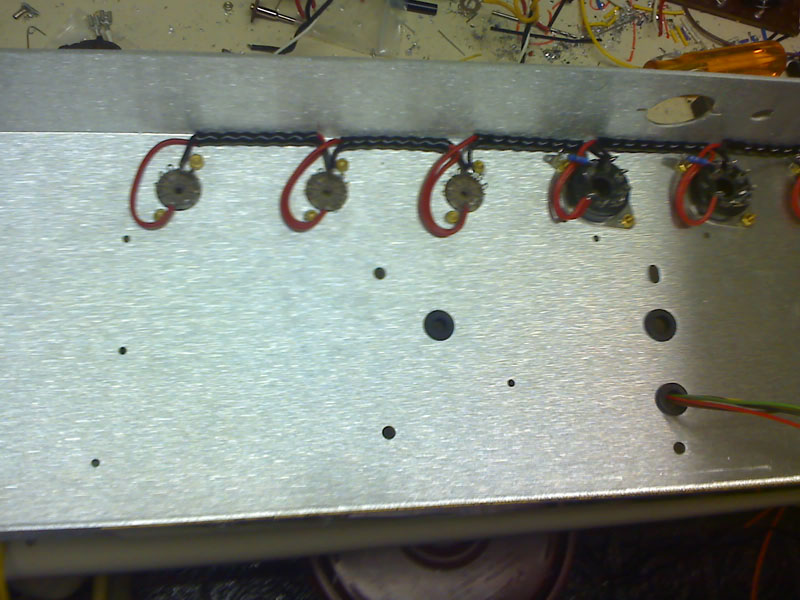

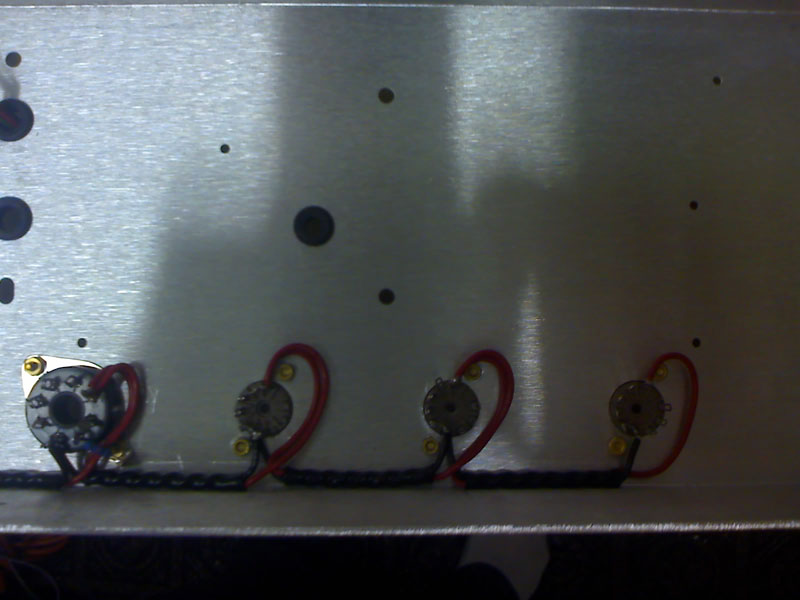

I started doing my heater wiring tonight... I prefer to get everything twisted and fitted before I spark up the soldering iron... below are some pre-soldering pics... I'll heat up the iron later tonight
- Attachments
-
- Preamp.JPG
- (157.49 KiB) Downloaded 1523 times
-
- Power.JPG
- (150.74 KiB) Downloaded 1523 times
-
- twisted.JPG
- (141.05 KiB) Downloaded 1530 times
-
- Pretwist.JPG
- (130.74 KiB) Downloaded 1523 times
Metro Clips
Amps:Metro-(JTM45,50w,'69 spec 100w,45/100,100wMV,Bluesbreaker Combo),Orig. 65BFTR
Axes:LP Custom,Am. Strat,Am. Tele,61 SGRI
Amps:Metro-(JTM45,50w,'69 spec 100w,45/100,100wMV,Bluesbreaker Combo),Orig. 65BFTR
Axes:LP Custom,Am. Strat,Am. Tele,61 SGRI
- VelvetGeorge
- Site Owner
- Posts: 7233
- Joined: Tue Oct 14, 2003 5:12 pm
- Just the numbers in order: 13492
- Location: The Murder Mitten
- Contact:
- gutpile
- Senior Member
- Posts: 1370
- Joined: Wed Nov 01, 2006 3:47 pm
- Just the numbers in order: 13492
- Location: Northville, MI
this coming from the guy that gave me my first set of alligator clips to "discharge my caps"...VelvetGeorge wrote:gutpile wrote:I started doing my heater wiring tonight... I prefer to get everything twisted and fitted before I spark up the soldering iron... below are some pre-soldering pics... I'll heat up the iron later tonight
Hmmm. twist then spark up???? Sure you're talking about heater wires here Mike?
VG
