Final power board wiring & install.

[lifer]

i followed the great billy batz's and gutpile's layouts, so this sucker HAS to be
perfect, right??? .......well, unless I f****d it up!!


check out my genuine JTM45 lamp woo-hoo!

[myfoot]

Looks really great lifer Gonna fire it up soon or savor the moment

[lifer]

thanks--- well, i have to hook up the bulgin plugs yet....have any idea
what color wires correspond to those little letters at the terminals?

i'm leaving for boston in 6 hrs. so i guess i won't be firing it up until i get home
sunday.

if i try it tonight and it doesn't work, it'll drive me nuts all weekend!

[myfoot]

No idea on those Bulgins. Maybe Neil or George can chime in.

[lifer]

yeah, i guess i'll post a question on the mod section about that.

that kinda has to be right on!!

[myfoot]

Or pm thousandshirts... I think he used those as well.

[bristol]

NIce work!

[lifer]

hey thanks, bristol. well, we'll find out how "nice" my work is..... i'm going to

test the voltages in about 5 minutes!!

.........maybe it'll even work.

[lifer]

aahhhh...crud!

no sound! checked the PI but i do have a 470 ohm in there, betwenn the two

1M rstrs. any ideas? i'm baked...i'll check 'er out tomorrow. zzzzz.......

[thousandshirts]

aahhhh...crud!

no sound! checked the PI but i do have a 470 ohm in there, betwenn the two

1M rstrs. any ideas? i'm baked...i'll check 'er out tomorrow. zzzzz.......

Post some pictures and I'll have a look.

[neikeel]

No idea on those Bulgins. Maybe Neil or George can chime in.

Only just saw this, presume you got it right. Live Neutral and earth (fground) with little triangle pointing to the correct pin.

earth is the one nearest the chassis, live is on the tranny side and neutral the preamp side.

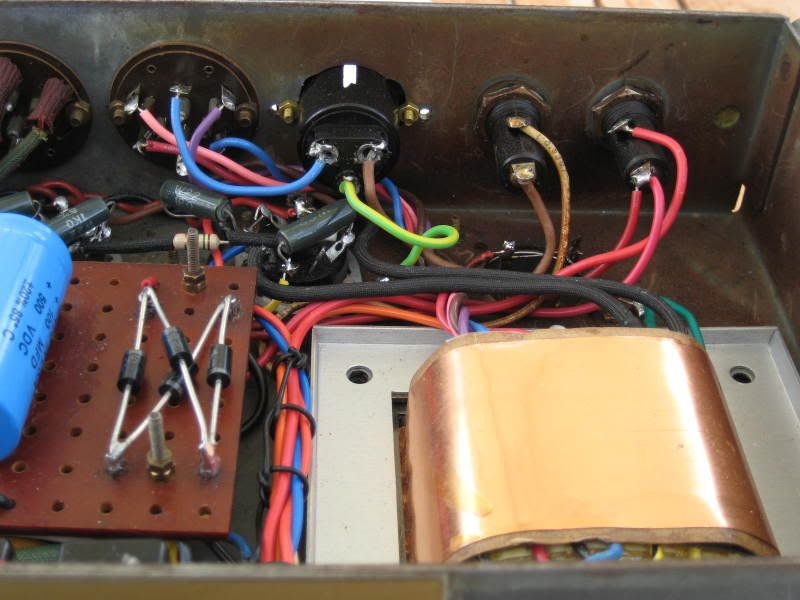

Clearest pic I have is this one:
