How do I capture a pic of what's on my screen??

Post by **VelvetGeorge** » Fri Jan 13, 2006 7:24 pm

I'm sweping some test tones through various components-

mustards, Sozos, Mallorys ect

and I would like to save the response curve, but my spectrum analyizer is real time only. I figure a screen shot will do the trick. But I have no idea how to make one.

Little help here???? I'll share what I find out about frequency response....

george

NY Chief · Post by **NY Chief** » Fri Jan 13, 2006 7:27 pm

Hold "Ctrl" then hit "Print Screen" then paste in Word. That oughtta get ya there, George.

BTW, the BEAST ROCKS!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Post by **VelvetGeorge** » Fri Jan 13, 2006 7:36 pm

Thanks Mike.

I've been meaning to contact you to see your inpression after playing it for a week.

George

JasonC · Post by **JasonC** » Fri Jan 13, 2006 7:36 pm

"Alt" + "Print Screen" will capture the current window, "Ctlr" + "Print Screen" will get you the entire screen - and then like Chief said, paste it into Word (or WordPad)

MacGaden · Post by **MacGaden** » Fri Jan 13, 2006 7:44 pm

OT: Congrats on the eBay mustard score...

Can I buy two ?

Post by **VelvetGeorge** » Fri Jan 13, 2006 7:54 pm

Sure, PM me.

VG

Post by **VelvetGeorge** » Fri Jan 13, 2006 7:57 pm

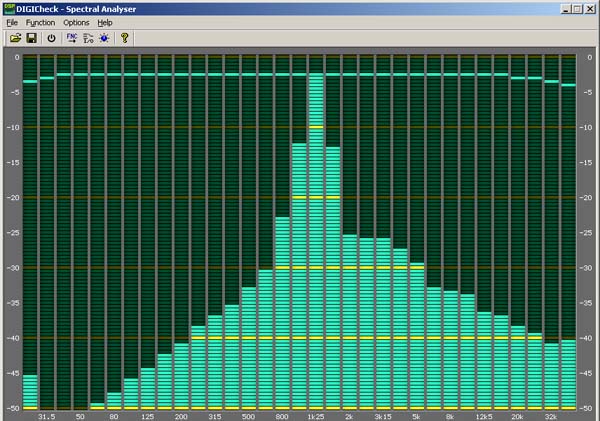

Test post....

VG

Post by **VelvetGeorge** » Fri Jan 13, 2006 8:01 pm

That last one was the Sozo .1

this is the Philips .1

Dead on from 40-40k. This graph is .5db resolution.

George

Necrovore · Post by **Necrovore** » Fri Jan 13, 2006 8:09 pm

George, you sure? The title bar says that both were the Phillips.

Post by **VelvetGeorge** » Fri Jan 13, 2006 8:12 pm

Yeah,I was trying to save the curve and it saved the graph settings as Philips .1

Here's the .022

VG

Post by **VelvetGeorge** » Fri Jan 13, 2006 8:19 pm

How about an Iskra 68k input resistor? Predictably the response starts to drop off around 6K.

George

Post by **VelvetGeorge** » Fri Jan 13, 2006 8:46 pm

Murata 250pf. One of those red, tubular types.

If you haven't figured it out, I got some new test equipment this week.

George

MacGaden · Post by **MacGaden** » Fri Jan 13, 2006 9:13 pm

Interesting. The .1´s seem to have a smoother cut-off in the highs than the .22´s, effectively letting higher frequencies through, but gradually attenuated ? It looks like the .22´s have a sharper Q, if that makes sense talking about components.

Why the difference ?

Post by **VelvetGeorge** » Fri Jan 13, 2006 9:15 pm

Here's what's happening with the 470k/500pf mixer componets.

George

Post by **VelvetGeorge** » Fri Jan 13, 2006 9:35 pm

Here's a '69 Dagnall OT with the sweep feeding the secondary. Response measured across 1/2 of the primary.

Predictably flat with such low levels and no loading. I'll figure out how to measure unded load with the core saturated.

I tried loosening the bolts to see if I could change the curve, but again the levels are too low for the core to be affected.

george
